Service center for stainless steel strips, stainless
precision steel strips and cold rolled steel as well as
unhardened
and hardened spring steel strips.
For special applications a normal, nearly burr free slit edges is not enough.
Therefor we have a modern, custom-built edge processing machine which
enables us to provide you several strip edges.
Tensile strenght:
Thickness:
Width:
von 350 - 750 N/mm²
0,400 mm - 1,000 mm
5,00 mm - 50,00 mm
Tensile strenght:
Thickness:
Width:
von 800 - 2500 N/mm²
0,100 mm - 1,500 mm
4,00 mm - 50,00 mm
Thickness:
Width:
0,350 mm - 2,000 mm
9,00 mm - 50,00 mm

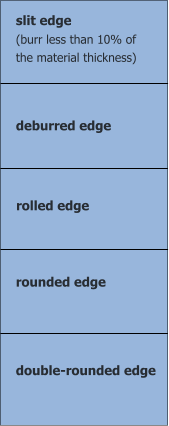

Edge processing
Edge processing by rounding
(Material removing)
The strip edges get chipped by hard-metal plates. According to customers
specification we can produce deburred, rounded and double-rounded
edges.
Inner diameter of the original and finished coil = 400 mm
Edge processing by rolling
(Material forming)
Certain materials don’t suit to a chipping process, especially softer
materials. For these material we use an edge rolling machine with an
integrated straitening.
Inner diameter original coil = 300 - 508 mm
Inner diameter finished coil = 150 / 400 mm
